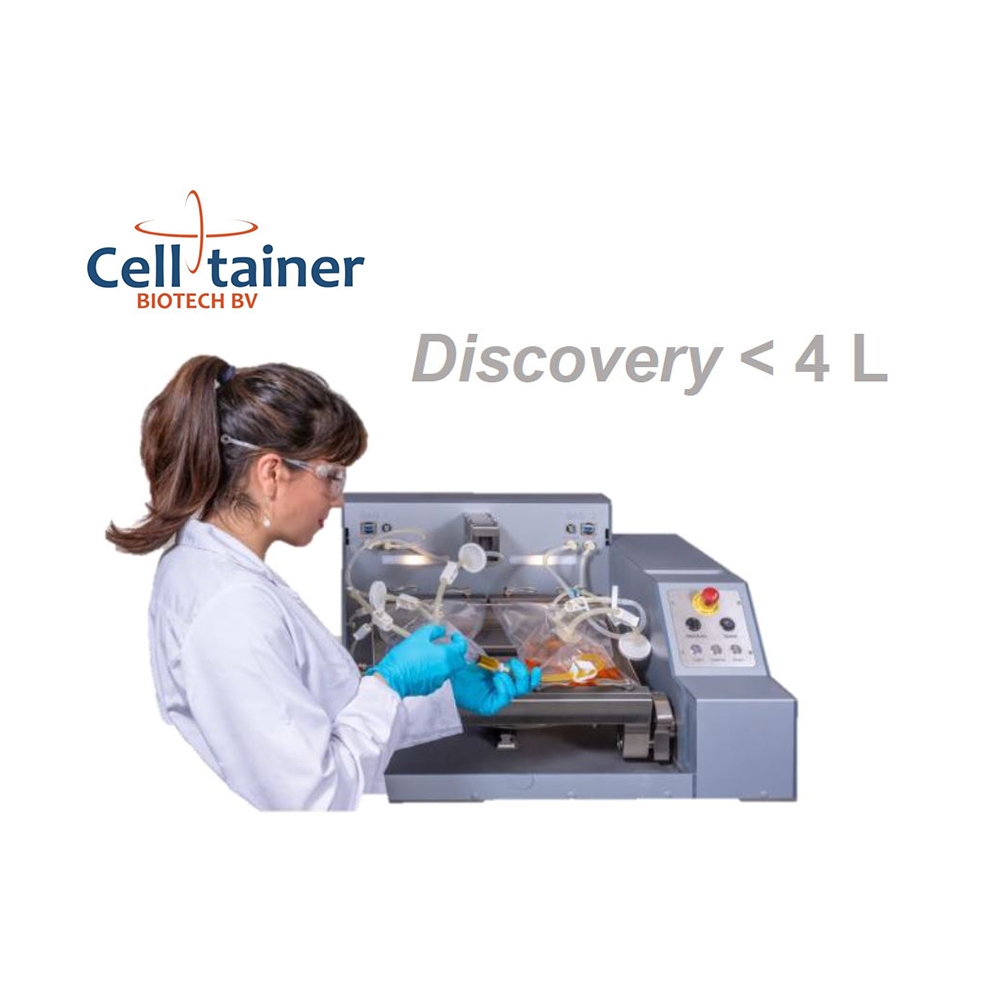

Cell-tainer 一次性生物反应器 CT2
The CELL-tainer® single-use bioreactor shows superior mixing and mass-transfer under low-shear conditions and is therefore an ideal system for shear sensitive cultures as well as suitable for microbial cultures.
The 2-dimensional movement is comparable to the 20L and 200L CELL-tainer®.
Either one or two bags can be placed on the same rocker platform, with a working volume of 50 mL – 1L when using two bags or 100 mL – 4L for one bag.
Specifications: Rocker
Size: 700 x 650 x 305 (W x D x H) Weight: 20kg
Cover: can be removed, UV protected plexiglas Operation: manual or automatic
Rocking speed: 0 – 45 rpm / variable angle: 7-14 o Filter heater (two filters): 50 oC
Connections for two bags
Temperature control: heat exchanger underneath the bags to be connected to a water bath
Controller
Mass flow controllers for gases (air / O2 / CO2 or N2) 2 – 4 pumps (Watson Marlow) for alkaline / acid DO and pH control for individual bags
Beckhoff PLC
Data acquisition and control software on separate PC
Benefits:
• High oxygen and CO2 – mass transfer rates at low shear mixing
• Also suitable for microbial, fungi and yeast culture
• Accurate temperature control using a bottom heat exchanger, temp. measurement in the liquid
• Classical pre-mounted sensors (pH/DO)
• Wide working volume range (0.1 – 4L)
• Flexible bag design (customized)
• Up to two bags / system
• Scalable to 20L and 200L CELL-tainer®
